Schneider Electric Motor Breaker Gv4le Mag 12.5a 50ka Elink/gv4le12n

₦265,000

2 products sold in last 20 hours
Selling fast! 1 person has in their cart

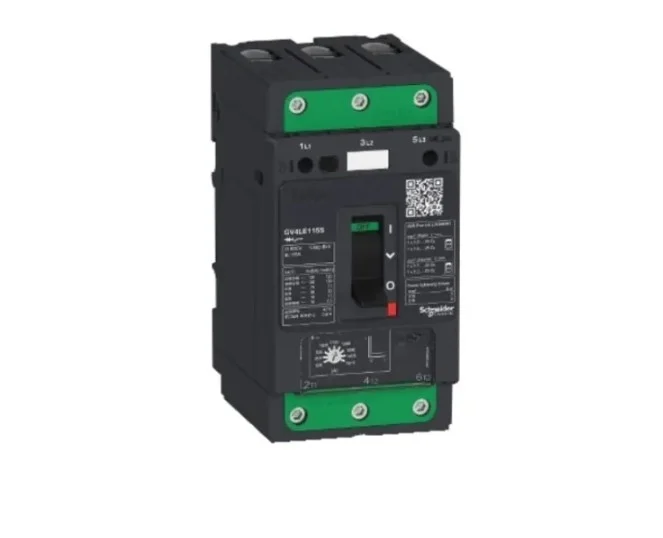

Schneider Motor Breaker GV4LE Mag 12.5A 50kA Elink/GV4LE12N

3 people are viewing this right now
  • Check Mark Estimated Delivery : From 0 to 7 business days
  • Check Mark Free Shipping & Returns : On all orders over N500,000
  • Visa Card
  • MasterCard
  • American Express
  • PayPal
Guaranteed Safe And Secure Checkout
Category: Brand:
Vintec Nigeria Limited
Vintec Nigeria Limited
Share with friends
Sold by: Vintec Nig. Ltd.
Report Abuse

Description

Weight 1.50 kg
Brand Schneider Electric
Main
range TeSys
device short name GV4L
product name TeSys GV4
product or component type Circuit breaker
device application Motor protection
trip unit technology Magnetic
Electronic



Complementary
poles description 3P
motor power kW 3 kW at 400…415 V AC 50/60 Hz
3 kW at 500 V AC 50/60 Hz
5.5 kW at 660…690 V AC 50/60 Hz
7.5 kW at 660…690 V AC 50/60 Hz
5.5 kW at 400…415 V AC 50/60 Hz
5.5 kW at 500 V AC 50/60 Hz
7.5 kW at 500 V AC 50/60 Hz
9 kW at 660…690 V AC 50/60 Hz
11 kW at 660…690 V AC 50/60 Hz
3.7 kW at 400…415 V AC 50/60 Hz
3.7 kW at 500 V AC 50/60 Hz
control type Toggle
[In] rated current 12.5 A
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
electrical durability 40000 cycles for AC-3 at 440 V In/2
40000 cycles for AC-3 at 440 V In
mechanical robustness Vibrations: +/- 1 mm 2…13.2 Hz conforming to IEC 60068-2-6
Vibrations: 0.7 gn 13.2…100 Hz conforming to IEC 60068-2-6
Shocks: 15 gn 11 ms conforming to IEC 60068-2-27
suitability for isolation Yes conforming to IEC 60947-1
height 155 mm
width 81 mm
depth 116 mm
net weight 1.5 kg
colour Grey (RAL 7016)



Environment
standards EN/IEC 60947-2
EN/IEC 60947-4-1
product certifications IEC
CCC
EAC
EU-RO MR
ambient air temperature for storage -50…85 °C



Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 1.674 kg
Package 1 Height 16.1 cm
Package 1 width 10.9 cm
Package 1 Length 22 cm
Unit Type of Package 2 S03
Number of Units in Package 2 5
Package 2 Weight 8.81 kg
Package 2 Height 30 cm
Package 2 width 30 cm
Package 2 Length 40 cm



Contractual warranty
Warranty 18 months

Additional information

Weight 0.5 lbs
